Boids Demo in Bevy

Jay Bond

I went into Dinacon 2022 with the notion that I would make an animal-themed videogame of some sort. It was a very vague goal which quickly became overshadowed by my desire to learn new tools, as I abandoned the fully-featured game engine and programming language I knew well in favour of an engine in its infancy and a language utterly new to me.

The result is a simple tech demo rather than a game, but I learned a great deal in the process and do not regret the choice.

The House Crow

Sri Lanka is home to a wide variety of fascinating wildlife, so the choice of a common house crow as the subject for my project may seem odd. However, I’ve always been attracted to creatures with unique relationships with human populations, and the crows certainly feature prominently in everyday Batticaloa. Their population size may be linked to human waste management problems. We regularly witnessed them stealing food from the endangered sea eagles who were nesting nearby, suggesting that in turn that population size can have an impact on other wildlife as well.

So I began my project with a simple 3D model of a crow, based roughly on photographs I took myself or collected from generous colleagues. I’m not an experienced modeller or animator, so it’s a little rough but suited my purposes.

Boids

As I discussed my interests with colleagues at Dinacon many ambitious ideas arose, such as modelling the social hierarchy of the crows, their interactions with other species, and how their population tracks with human waste management patterns.

However, I settled on modelling flocking behaviour, in part because it is something I always wanted to model in a game engine. I was also surprised to learn from biologists in attendance that the algorithms they used to model flocking behaviours were very similar to those I had heard of used in videogames. It should be said, however, that although we witnessed crows in large groups often I don’t believe this demo to be very accurate to the way those groups move about.

The Boids algorithm was developed in 1986 and has applications in simulations and videogames. It’s also very commonly the subject of tech demos such as this one! The gist of the algorithm is the balancing of three goals for each “boid”: separation, alignment and cohesion. All are based on each boid knowing the nearest bunch of neighbours in the flock. Separation is the goal in which each boid wishes to push away from any other boid that is too close. That is, it keeps them from bumping into each other. Alignment is the goal in which each boid attempts to face the same direction as its neighbours. Cohesion is the goal in which each boid attempts to get near the average position of its neighbours. This condenses larger groups into smaller ones, while separation functions as a counter-balance to keep a minimum distance between them. At each timestep in the simulation, every boid recalculates where it wants to go according to these three goals, and steers accordingly. The results of this very simple algorithm are surprisingly natural and varied.

The basic goals of the Boids algorithm, swiped shamelessly from Wikipedia.

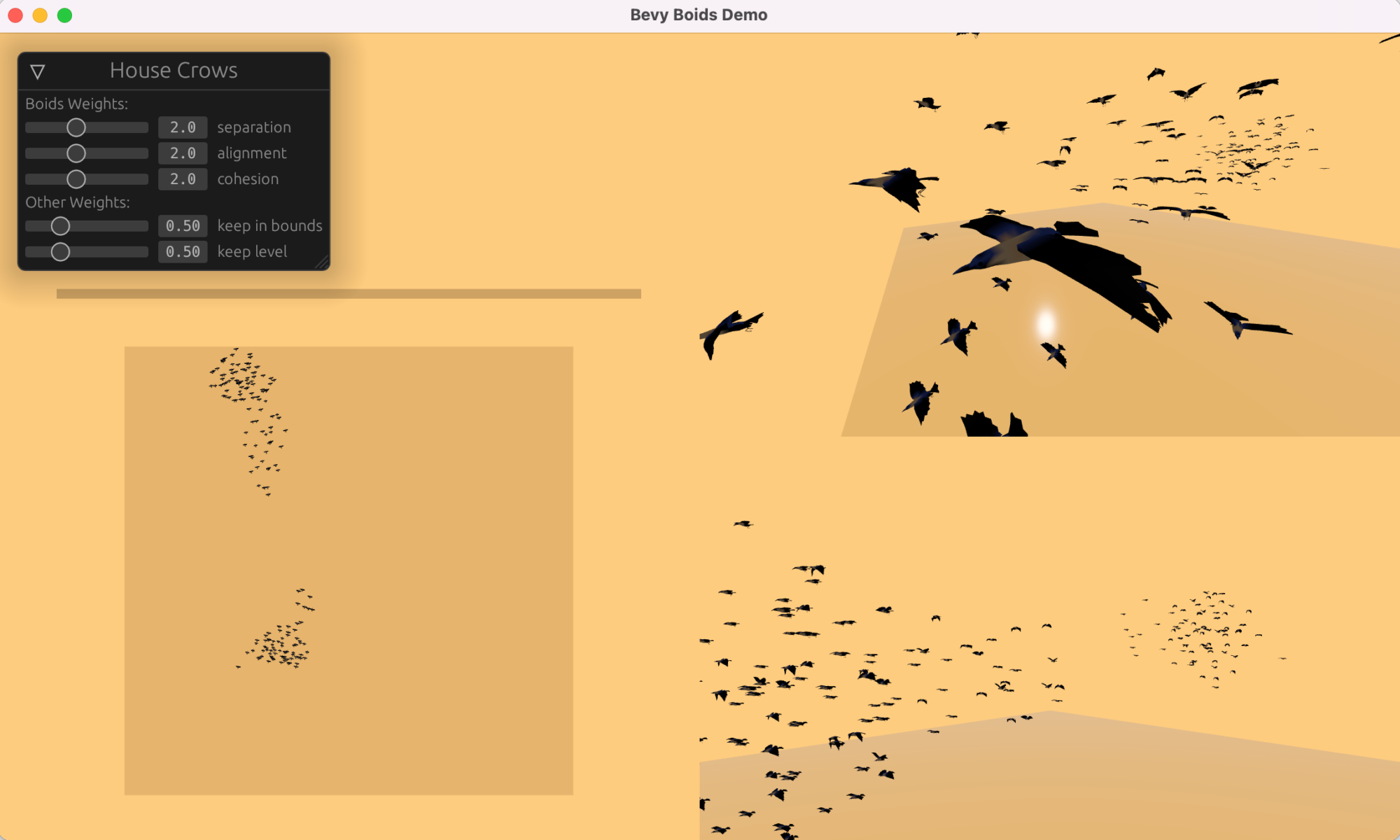

In the demo, each of these goals is exposed as a weight with a slider. You can adjust them individually and observe the resulting change in the flocking behaviour. It sometimes takes a minute for the effects of changes to become obvious, but by varying these weights you can create larger or smaller flocks in tight or loose formations.

Bevy & Rust

The game engine I chose for this project, aptly named Bevy, is still quite early in its development. What attracted me to it was its open-source nature, cross-platform support, and its use of modern programming paradigms. It’s also programmed in Rust, a very new, low-level language which has rapidly gained popularity in the FOSS community.

It stands in stark contrast with Unity, the game engine I have used both as a hobbyist and professionally for more than a decade. Unity is rich with features, but is owned by a large private company and is married to paradigms and a language (C#) which are falling out of fashion. Moreover, Unity’s business practises include a cozy relationship with the US military — something that doesn’t sit well with me, personally. While I cannot avoid it at my day job, I was determined to learn something new at Dinacon, and have enjoyed my experience so far with Bevy.

Downloads

The demo, including full source code and crow asset, can be found at:

https://github.com/HulloImJay/bevy_boids_demo

Posted on

Intro to Unity Class @ Dreamspace Hive

Jay Bond

In collaboration with Dreamspace Academy’s Software Lab, we ran a 2-day workshop introducing game development using the Unity game engine.

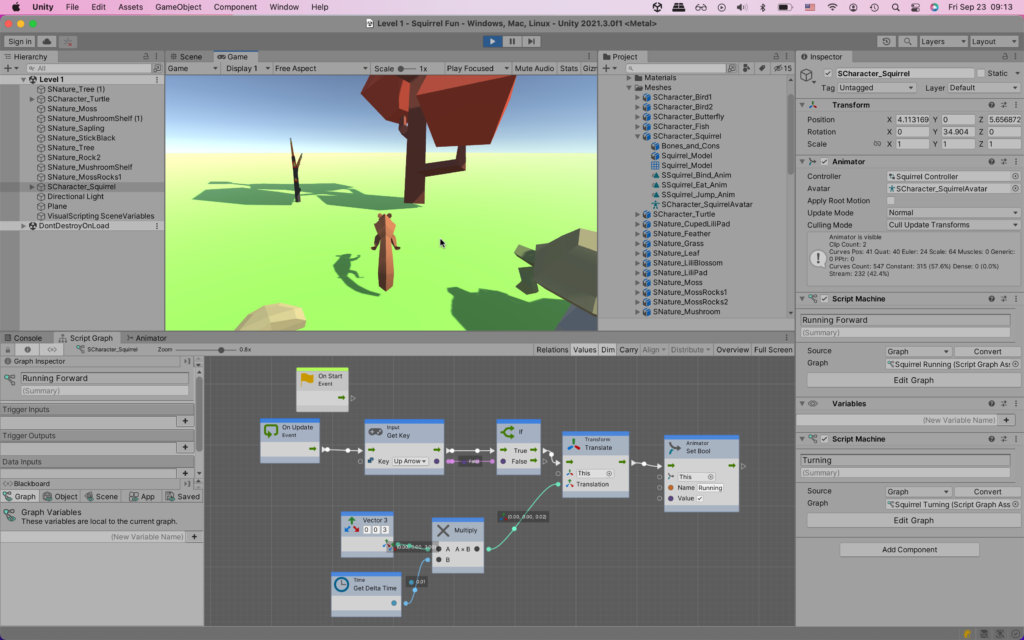

Despite technical woes along the way an amazing group of participants learned to assemble 3D scenes and to create game logic through visual scripting.

Posted on

USB Microscope + 3d Printed Labyrinth + OpenCV

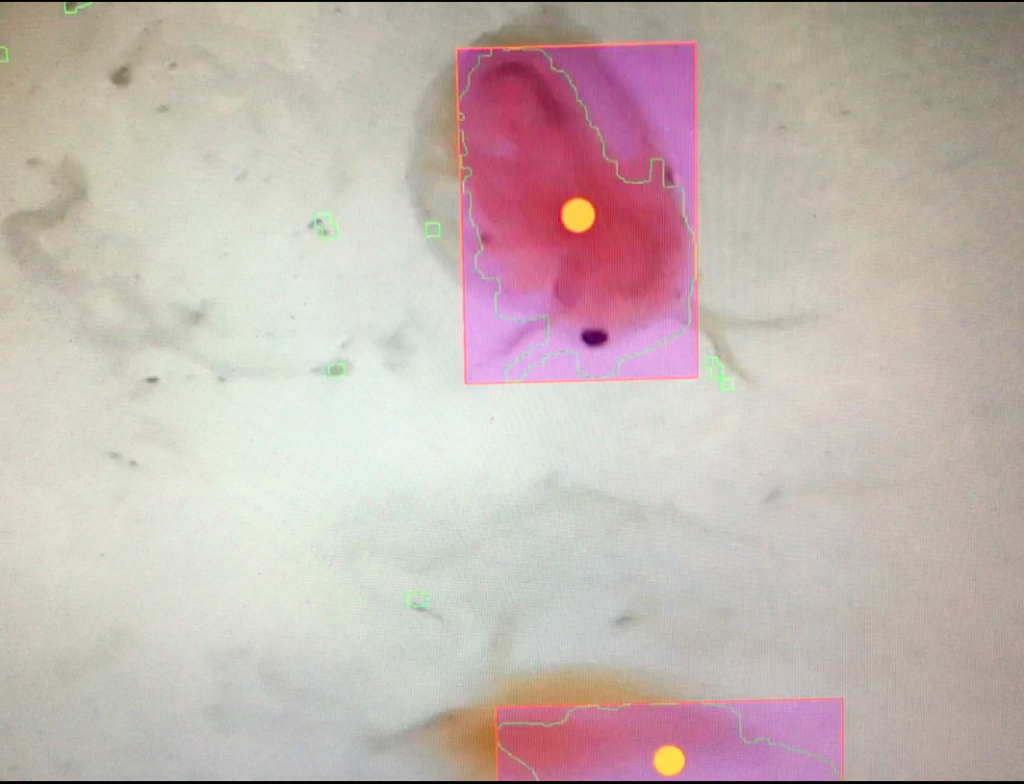

Experiment with remains of plastic, wood and a modified USB-microscope. Rodolfo and Leonie used Processing and an Open CV library to analyze the image of moody water. They also print a tinny labyrinth for a petri-dish with recycled filament out of a 7up bottle! (Thanks to Andrew for the recycled filament)… Next step is to make a video-game for small creatures.

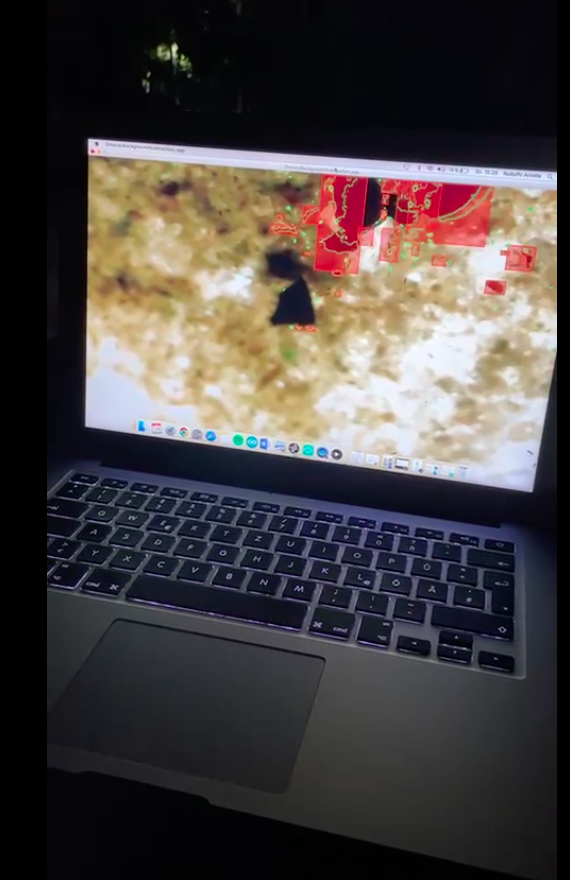

At night flying ants were landing into the illuminated petri-dish. Unexpected visitors!

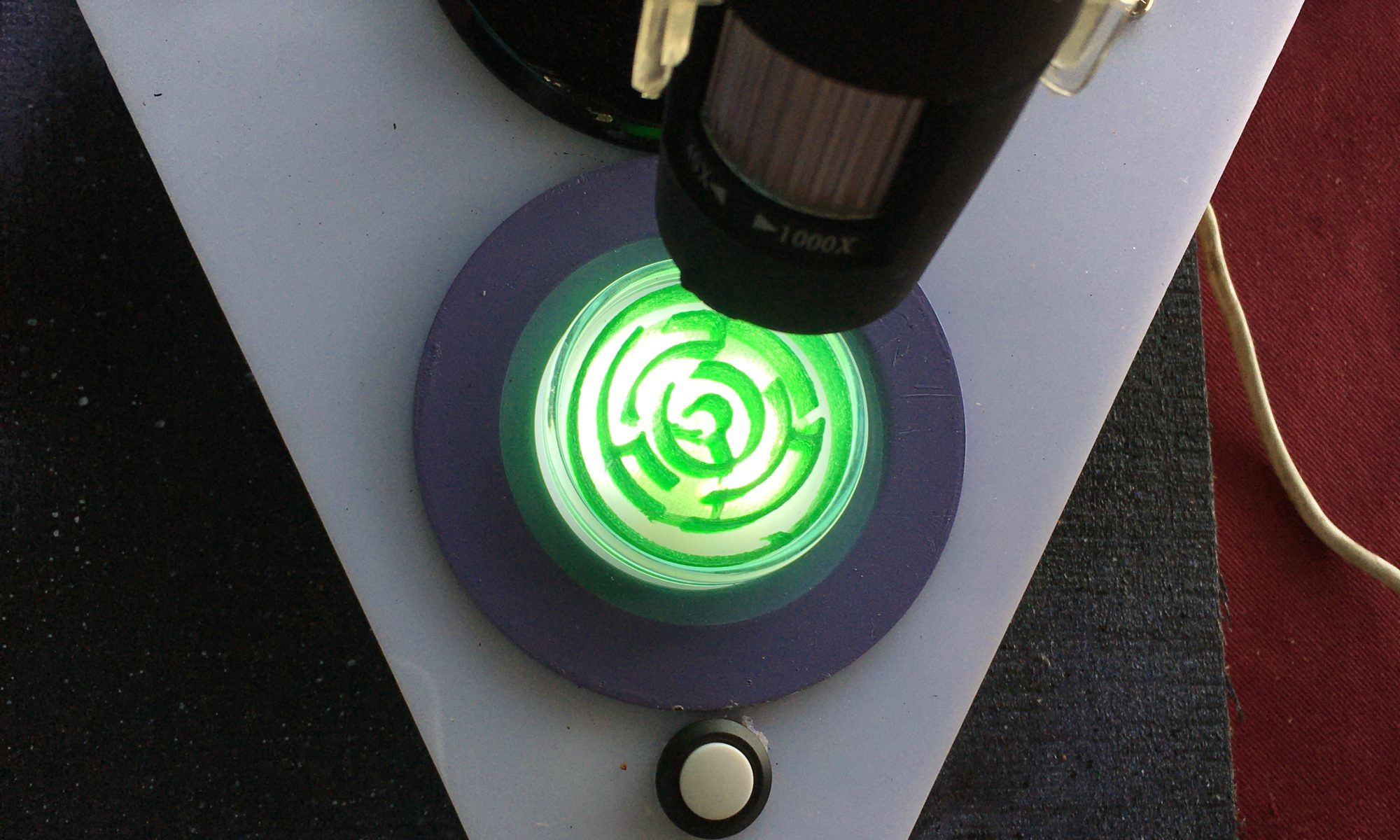

here the USB microscope and some Daphnias (small planktonic crustaceans). The code for the Processing program can be found here: https://github.com/rodolfoacostacastro/USBmicroscope_openCV

Posted on

SolFM

SolFM

The goal of this project was to build a solar-powered short-range analog FM transmitter from scavenged parts taken out of broken AM and FM transistor radios, to equip it with a simple microphone, and to place it where it could listen to the “natural” environment but also to the people moving around that environment. It would broadcast that sonic landscape to any person tuned to the right signal on an FM receiver. The idea was to highlight the fact that human presence affects the world in both sensed and unsensed ways, and the presence of a body affects the functioning of an antenna as much as it affects the soundscape. The radio functions as a sort of artificial organism, beholden to the sun for energy to continue “living” and carrying out its daily activities (listening and transmitting what it hears) and serves as a stand-in for non-human biological organisms that we interfere with, for better or worse, everywhere we go.

I gave myself the constraint of using as little gear as possible to scavenge for parts from the old boards (just solder braid, an iron and basic pliers, no ovens or blowers like I would use in my lab) but I also gave myself a backup in the form of kit boards that were the same circuit I intended to build, in case of some misfortune.

What ended up happening was a sort of 3-fold project: a still-in-progress field guide to minimalist scavenging of useful parts from broken tech, the intended solar-powered FM transmitter, and an ad-hoc collaborative performance between myself and William’s solar powered analog bird.


The three parts:

  1. Working to dissassemble the boards with minimal gear proved challenging, mostly because of power outages and multiple broken soldering irons. But that difficulty just spurred the idea to create the field guide zine.

The title page is here:

Learning to determine what is and isn’t useful from a piece of broken tech is an important skill in a world that increasingly requires all of us to consider use and re-use carefully, and learning to remove it safely is equally if not more important. Some of the useful parts separated from the radios:

The field guide will be in ongoing development with the Media Archaeology Lab, and will be tested with volunteers and students for usability before publishing.

  1. I assembled the kits I brought along as a backup because of the difficulties with disassembly – here’s a dissassembly in progress and me being slightly exasperated:

Once the kits were put together I got the circuit running off of solar cells – fortunately straightforward. I scavenged those mostly from solar powered garden lights and fountain pumps, so they’re pretty ideal for areas with unforgiving climates. Scavenging usable parts from discarded consumer tech is an extremely cost-effective way to get not only parts but also fully functioning circuits that can be integrated into projects – often with less effort and better results than building things fully from scratch.

Once the kits were assembled and tweaked to appropriately take power from solar rather than a DC power supply or battery, they worked beautifully. Here I am finishing up the kit:

The signal strength was even more dependent on the strength of the sun than expected, which was an excellent discovery and really added to the overall feeling of tenuous aliveness that the radio had. Here it is perched on a coconut in the courtyard:

And me tweaking the signal:

  1. The performance with William came about when we were both toying with our solar-powered projects and realized that we could make them talk to eachother. William’s project’s speaker was placed directly beside the transmitter’s microphone and we were able to pick up that transmission on the receiver from a pretty significant distance – inside the building at DreamHive from across the yard. The projects were shown together perched on a plumeria in the yard for the open house. Here we are tinkering:


And here are some better shots of both the bird and the transmitter:

Ultimately a really fun way to play with the attributes of both projects.

Technical details:

The circuit diagram I worked from was published in Radio Is My Bomb and has been published on Tetsuo Kogawa’s website along with instructions and parts lists. The analog circuit kits I adjusted for use follow the same basic circuit as Kogawa’s simplest FM transmitter, and required only adjustments to the power jack to work well with the solar panels. I did swap out a resistor for a lower value in the power line but that was probably ultimately unnecessary.
